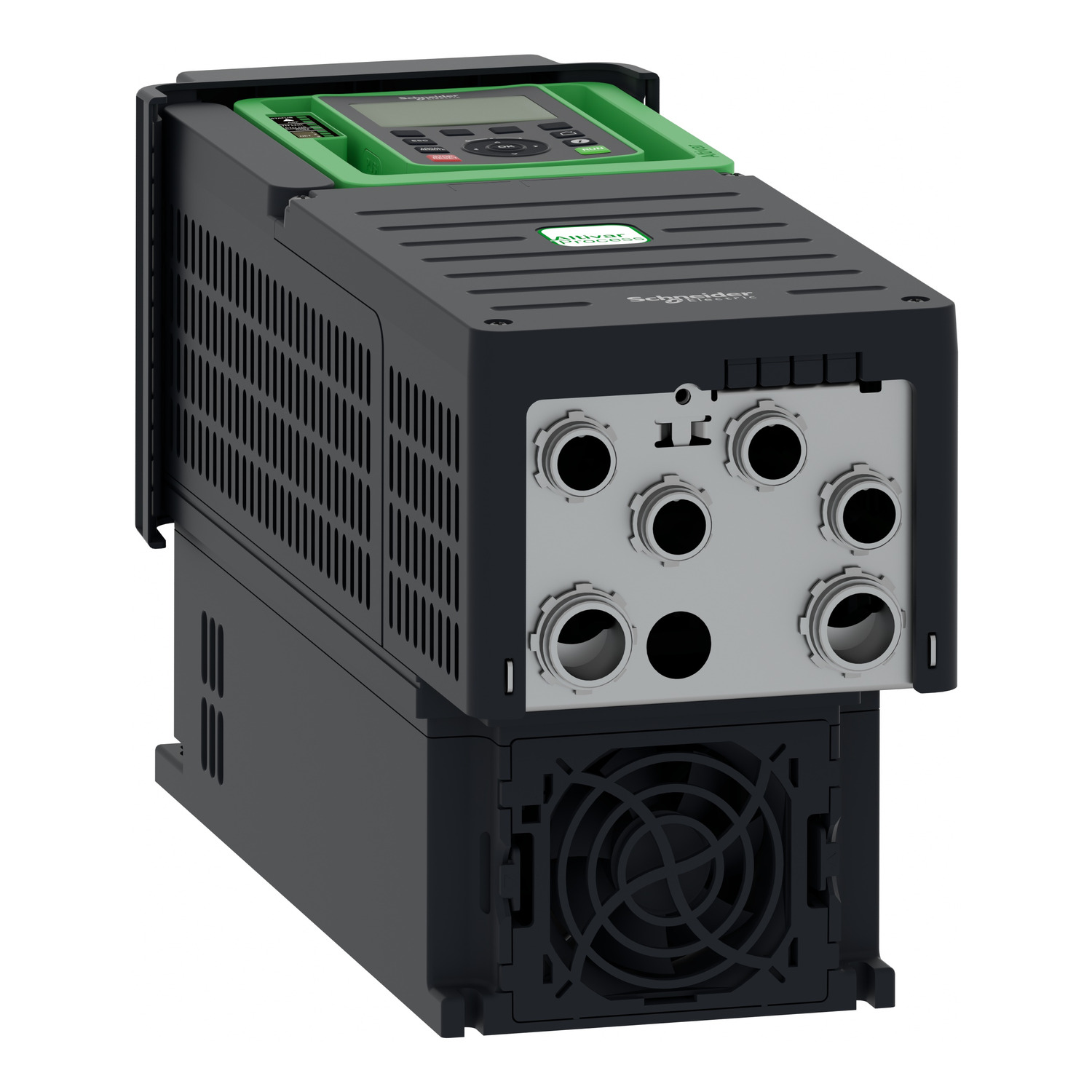

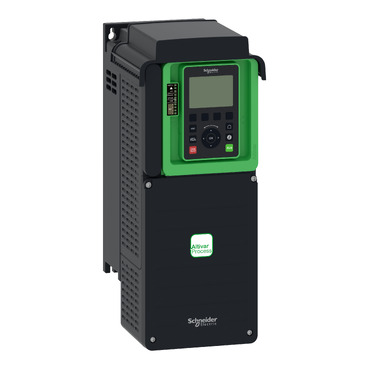

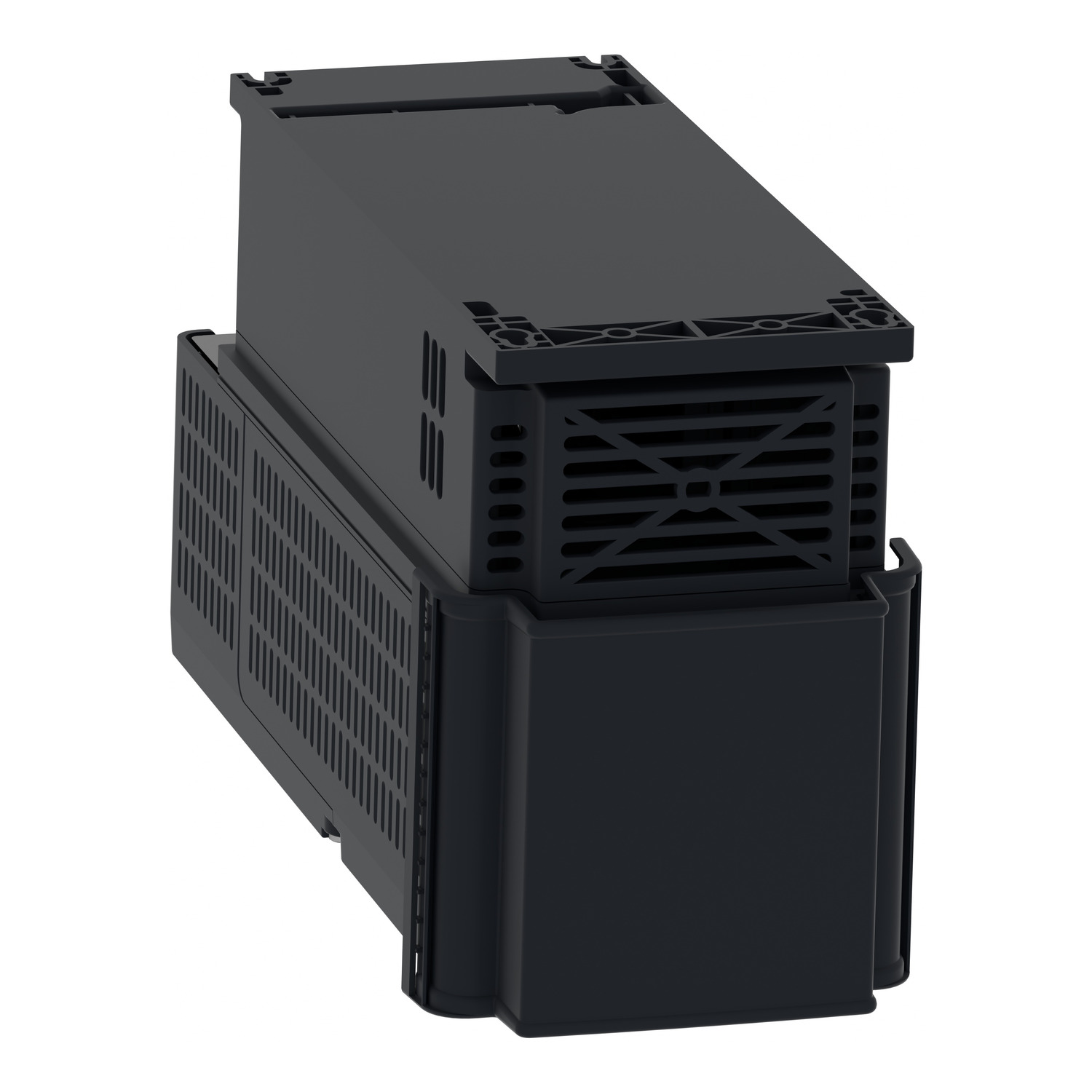

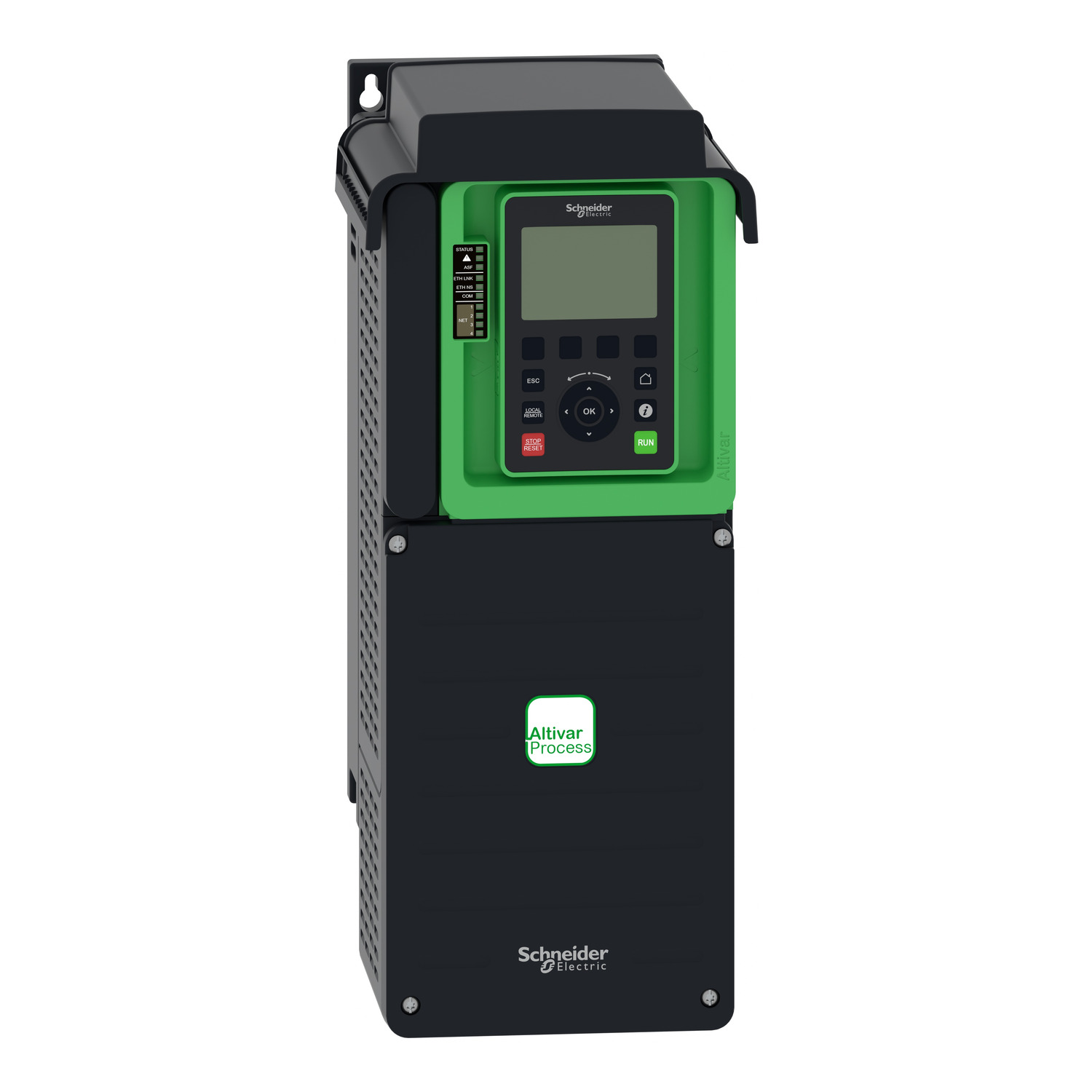

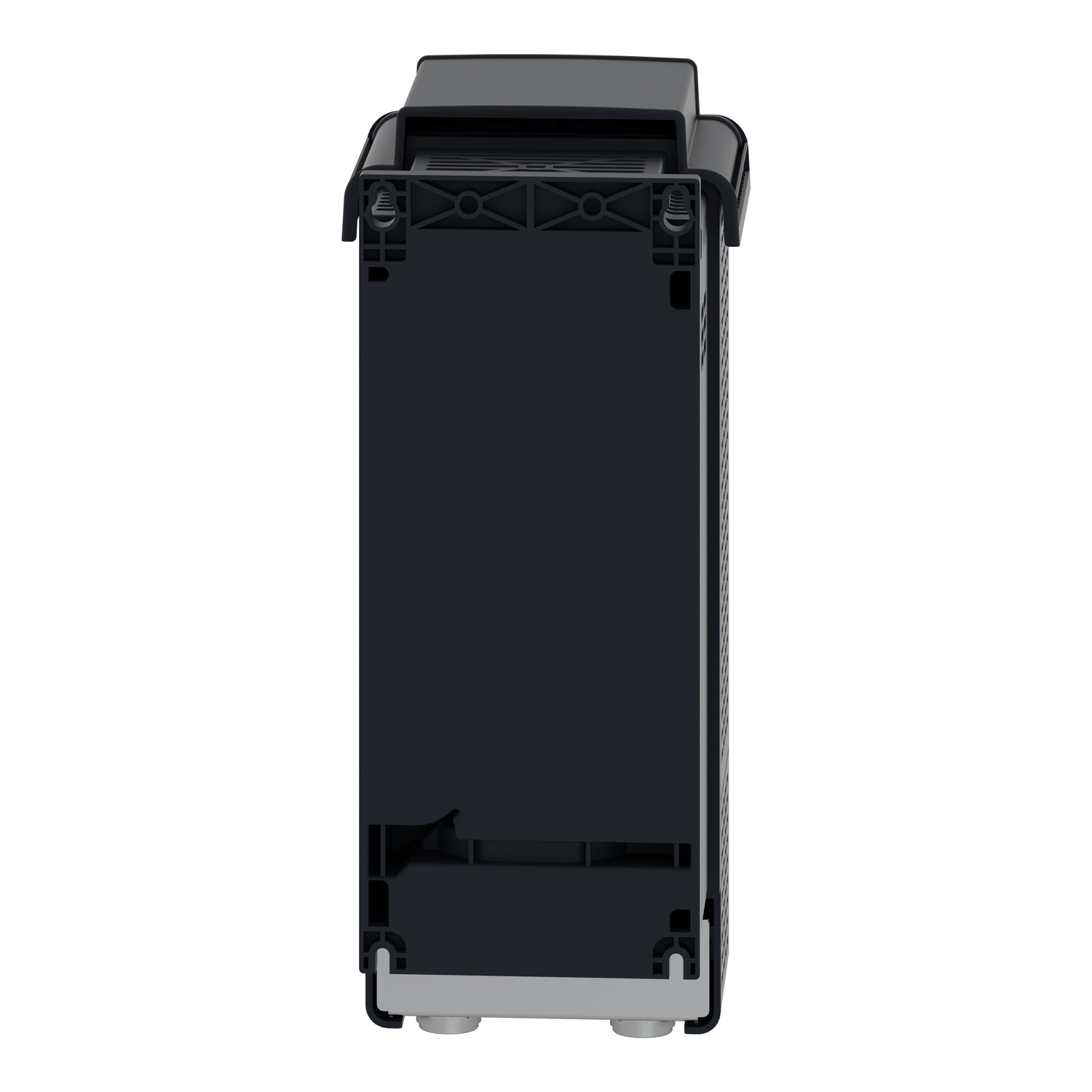

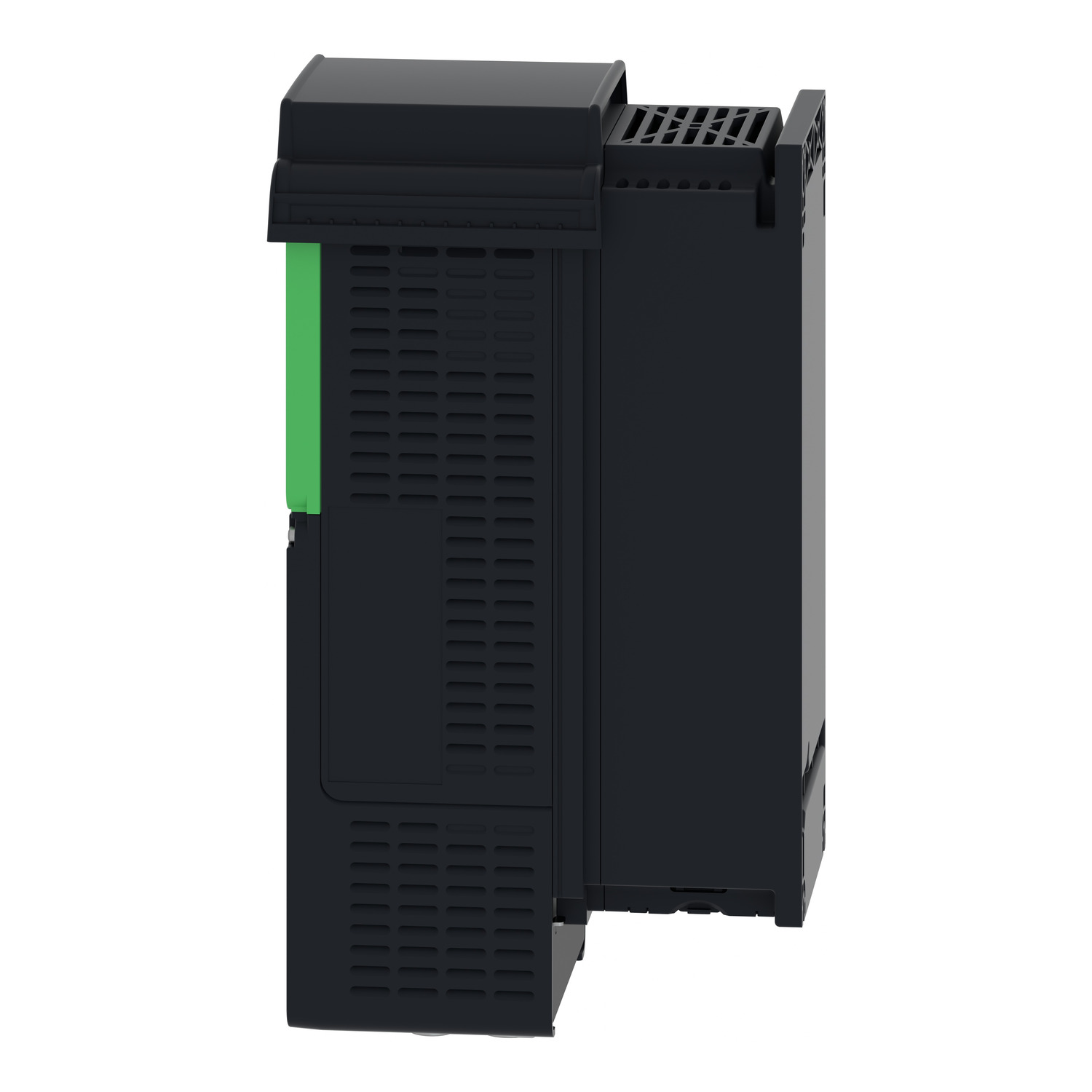

Schneider Electric ATV63 Series Variable Speed Drive, 11kW Power Rating, 11kW Power Rating Supply Voltage - ATV630D11N4
This variable speed drive is designed for process and utility applications, offering robust control for asynchronous and synchronous motors. With a power rating of 11 kW and a current rating of 19.8A, it provides flexibility through adjustable output frequencies ranging from 0.1 to 500 Hz. Its compact dimensions (409mm depth, 171mm length, 233mm width) make it suitable for wall mounting, ensuring efficient space utilisation.
Features & Benefits
• Integrated Profibus communication for seamless connectivity
• Energy-saving capability contributes to reduced operating costs
• Safe torque-off function enhances operational safety
• IP21 rating ensures protection from solid objects larger than 12mm
• Embedded power measurement for real-time energy monitoring
Applications
• Ideal for HVAC screw compressor systems
• Utilised in food and beverage processing pumps
• Supports operation in mining, mineral, and metal
• Effective in oil and gas water injection systems
• Suitable for water and wastewater screw pumps and mixers
Specifications:
| Brand |
Schneider Electric |
| Series |
ATV63 |
| Product Type |
Variable Speed Drive |
| Drive Type |
Variable Frequency |
| Power Rating |
11 kW |
| Number of Phases |
3 |
| Maximum Output Current |
23.5 A |
| Supply Voltage Range |
380–480 V |
| Output Frequency |
Up to 500 Hz |
| Compatible Motor Type |
Synchronous, Asynchronous Motor |
| Mount Type |
Wall |
| IP Rating |
IP21 |
| Overall Length |
171 mm |
| Overall Width |
233 mm |
| Overall Depth |
409 mm |
| Minimum Operating Temperature |
-15 °C |
| Maximum Operating Temperature |
50 °C |
| Standards / Approvals |
ATEX, CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2,
IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, TÜV, UL 508C
|
| Better World Product |
Yes |
| Better World Claim |
Saves Energy |
