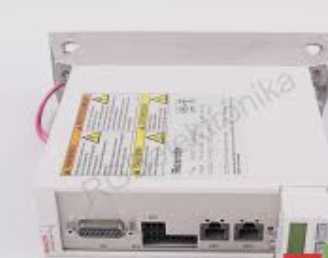

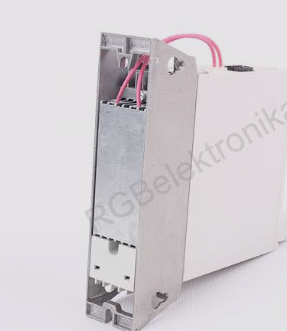

Rexroth IndraDrive CS HCS01.1E-W0008-A-03 900W Servo Drive Controller

Finding a reliable servo drive that can handle precise motion while keeping power consumption low is a common challenge for machine builders. When the drive is unstable, the whole system can lose accuracy, waste energy, and cause costly downtime. The Rexroth IndraDrive CS HCS01.1E-W0008-A-03 900W Servo Drive Controller solves this by delivering stable 900 W power, built-in protection, and easy integration, so you can keep your machines running smoothly and efficiently.

Rexroth IndraDrive CS HCS01.1E-W0008-A-03 900W Servo Drive Controller with Rexroth

This compact controller is designed for high-performance motion control in industrial automation. It takes a 3-phase AC input from 200 to 500 V and converts it to precise output for motors up to 900 W. If you are struggling with inconsistent torque or overheating, this unit gives you the exact control you need without extra cooling equipment. The Rexroth brand adds confidence because it is known for durability and engineering excellence.

Usages

The servo drive fits well in CNC machines where exact positioning is critical. It also works in packaging lines that need fast start-stop cycles. Robotics applications benefit from its quick response and low braking energy. Small conveyor systems can use the controller to save space while still delivering strong torque. In any setting that requires reliable motor control, this drive is a solid choice.

Benefits

• Stable power output reduces motor wear and extends equipment life.
• Built-in brake chopper saves energy during rapid stops.
• Compact size (215 mm 50 mm 196 mm) frees up panel space.
• IP20 protection keeps the unit safe from dust in most factory areas.
• Low base power consumption (28 W) lowers operating costs.

Key Features

• Continuous current of 2.7 A and maximum current of 8 A.
• Input voltage range 3 200-500 V AC for flexible power sources.
• Continuous power without choke 0.86 kW, peak power 2.58 kW.
• Intermediate circuit capacity 0.11 mF for smooth voltage conversion.
• Brake chopper energy consumption 0.8 kWs, max braking power 4 kW.
• External control voltage 24 V 5 % for easy wiring.
• Air cooling eliminates the need for fans or liquid cooling.
• Degree of pollution rating 2, suitable for typical industrial environments.
• Mass only 0.72 kg, making installation and handling simple.
• Frequency tolerance 2 Hz ensures reliable operation on standard grids.

Specifications
