Tired of missing important moments on the road? The JimiIoT JC450, 3-axis Sensor, 4G AI Dashboard Camera captures every angle, every incident, and sends the video straight to the cloud. It is built for drivers who need reliable evidence, fleet managers who want real-time monitoring, and anyone who wants peace of mind while driving. With built-in AI and 4G connectivity, you never have to worry about losing footage again.

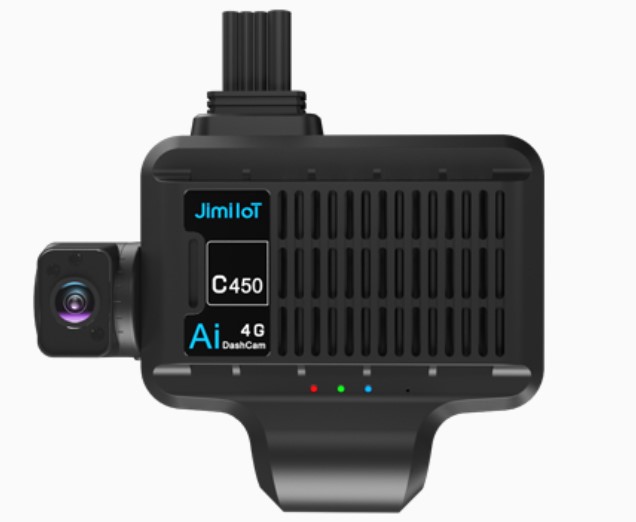

JimiIoT JC450, 3-axis Sensor, 4G AI Dashboard Camera
Many drivers face unclear video, delayed uploads, and no sensor data when an accident happens. Without clear proof, insurance claims become a hassle and safety reviews are incomplete. This matters because every second of video can decide who is at fault and can help improve driver behavior. The JC450 solves the problem by combining a high-definition front camera, a 3-axis motion sensor, and 4G LTE that streams video instantly to an AI dashboard. The result is fast, reliable evidence that is easy to access from any device.
Usages of JimiIoT
You can mount the JC450 in a personal car to record daily trips and protect yourself in case of a collision. Taxi operators use it to show passengers a transparent ride record and to settle disputes quickly. Delivery fleets install the camera to monitor routes, verify stops, and improve driver safety. Bus companies fit it on each vehicle to keep an eye on passenger areas and to provide evidence for any incident. Even construction sites can use the unit on heavy equipment to record work progress and detect unsafe movements.
Benefits
- Instant video upload saves time when filing insurance claims.
- 3-axis sensor alerts you to sudden movements, helping prevent accidents.
- AI dashboard analyzes footage, highlighting risky behavior for driver coaching.
- 4G LTE works without Wi-Fi, so you stay connected on any road.
- Compact design fits any vehicle without blocking the view.
Key Features
- 4G LTE Cat.4 network for fast streaming.
- 19201080 full-color front camera at 25 FPS, 80 HFoV.
- 3-axis motion sensor for tilt and impact detection.
- GPS positioning for accurate location tagging.
- Supports up to 256 GB TF card for local backup.
- Multiple interfaces: Type-C USB, RS232, TTL, relay, digital inputs, CVBS-OUT.
- BLE 4.0 Bluetooth for easy pairing with mobile apps.
- Wi-Fi 2.4 GHz with AP, STA, and Direct modes.
- LED indicators for power, cellular, and GNSS status.
- Operating voltage 9-30 V, temperature range -20 C to +70 C.
Specifications
| Network |
| Standard |
4G LTE Cat.4 |
| WiFi |
2.4GHz, Support AP Mode/STA Mode/WiFi Direct |
| Bluetooth |
BLE 4.0 |
| Band |
Eurasian Version
FDD-LTE: B1/B3/B7/B8/B20/B28A
TDD-LTE: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8 |
Northern American Version
FDD-LTE: B2/B4/B5/B12/B13/B14/B66
WCDMA: B2/B4/B5 |
Latin American Version
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28
TDD-LTE: B40
WCDMA: B1/B2/B4/B5/B8
GSM: B2/B3/B5/B8 |
| Camera |
| Front Camera (Main) |
1920×1080/25FPS/F2.0/Full color/80° (HFoV) |
| Video Format |
.ts |
| Configuration |
| GNSS |
GPS |
| Sensor |
3-axis |
| Microphone |
Support |
| Speaker |
Support |
| Interface |
Type-C USB*1, SOS*1, RS232*1, TTL*1, Relay*1, Digital Input*2, CVBS-OUT*1 |
| Memory Support |
TF Card (Up to 256GB*2) |
| SIM Card Type |
Nano |
| LED Indication |
Red (Power), Blue (Cellular), Green (GNSS) |
| Others |
| Power Supply |
Power cable: B+/ACC/GND |
| Operating Voltage |
DC 9–30V |
| Operating Temperature |
–20°C to +70°C |
| Storage Temperature |
–30°C to +85°C |
| Device Weight |
374g |
| Device Dimension |
114*113*33mm |
| Certifications |
CE/FCC/PTCRB/RoHS |
