Product Description

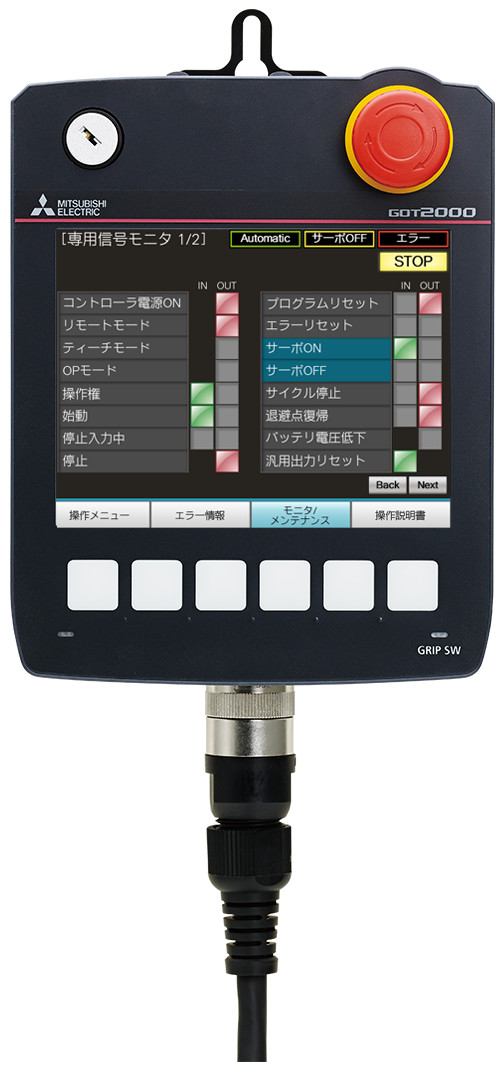

The GT2505HS‑VTBD is a GT25 Handy GOT, a portable human‑machine interface (HMI) designed for handheld operation of machinery and equipment. Featuring a 5.7″ VGA color TFT LCD with 65,536 colors, this compact HMI offers convenient control of systems while viewing them directly. The unit supports 24 V DC power and is built for rugged environments, offering IP65F protection and compliance with multiple industrial standards.
With ergonomic features such as a hand strap for secure single‑hand use, integrated grip and emergency stop switches, and one‑touch detachable external connection cable, the GT25 Handy GOT ensures both safety and ease of operation in dynamic industrial settings.
Key Features
-
5.7″ VGA TFT color LCD with 65,536 colors
-
Portable Handy GOT for on‑the‑move machine operation
-
Emergency stop switch for enhanced safety
-
Grip (deadman) switch for accident prevention
-
Keylock switch to restrict operation modes
-
LED operation switches to eliminate hard panel switches
-
Easy one‑touch connection cable for quick setup
-
Hand strap support for secure single‑hand holding
-
IP65F protection when cable connected
-
Complies with UL/cUL, CE (EMC), CE (RoHS), and KC standards
-
RS‑232 / RS‑422 / Ethernet communication capabilities
-
USB host and USB device ports
-
SD memory card support (SDHC up to 32 GB)
-
Ideal for portable HMI control in industrial automation environments
Specifications
Category
|
Feature
|
Specification
|
| Display |
Display Type |
5.7″ VGA Color TFT LCD |
| |
Resolution |
640 × 480 dots |
| |
Display Size |
115.2 mm × 86.4 mm |
| |
Display Colors |
65,536 colors |
| |
Brightness Adjustment |
32 levels |
| |
Registrable Screens |
4096 |
| |
Backlight |
LED (not replaceable) |
| |
Backlight Life |
Approx. 60,000 h (25°C, 50 % brightness) |
| Touch & Input |
Touch Panel Type |
Analog resistive film |
| |
Touch Resolution |
2 × 2 dots minimum |
| |
Simultaneous Press |
Not available (single touch) |
| |
Touch Life |
≥ 1,000,000 touches (≤ 0.98 N) |
| Memory / Clock / Battery |
User Memory |
ROM: 32 MB |
| |
Operating Memory |
RAM: 80 MB |
| |
Memory Life |
100,000 write cycles |
| |
Built-in Clock Precision |
±90 s/month (25°C) |
| |
Battery Type |
GT11‑50BAT lithium |
| |
Backup Target |
SRAM / Clock / System log |
| |
Battery Life |
Approx. 5 years (25°C) |
| Built-In Interfaces |
RS‑232 / RS‑422 |
1 channel selectable, up to 115,200 bps, round 32‑pin male connector |
| |
Ethernet |
1 channel, 100BASE‑TX / 10BASE‑T, round 32‑pin male connector |
| |
USB (Host) |
1 channel, USB‑A, High-Speed 480 Mbps |
| |
USB (Device) |
1 channel, USB Mini-B, High-Speed 480 Mbps |
| |
SD Memory Card |
1 channel, SDHC compatible (max 32 GB) |
| |
Wireless LAN Interface |
Not available |
| |
Sound Output |
Single tone, adjustable |
| Switches & Indicators |
Operation Switch |
6 switch contacts (N/O), max 10 mA / 24 V DC |
| |
Grip Switch |
1 switch (deadman OFF‑ON‑OFF), max 1 A / 24 V DC |
| |
Emergency Stop Switch |
1 switch (3 N/C), max 1 A / 24 V DC |
| |
Keylock Switch |
2-position, 2 notch, 2 keys provided |
| |
Buzzer |
Single tone (adjustable) |
| |
POWER LED |
2 colors (blue / orange) |
| |
Operation Switch LED |
1 green |
| Physical & Environmental Specs |
Installation Method |
Handy GOT (portable) |
| |
Panel Color |
Black |
| |
Protective Structure |
IP65F* when external cable connected |
| |
Dimensions (W×H×D) |
145 × 185 × 79.3 mm |
| |
Weight |
Approx. 0.79 kg (main unit only) |
| |
Operating Temperature |
0 °C to +40 °C |
| |
Storage Temperature |
−20 °C to +60 °C |
| |
Operating Humidity |
10 % to 90 % RH, non-condensing |
| |
Storage Humidity |
10 % to 90 % RH, non-condensing |
| |
Vibration Resistance |
Compliant with JIS B 3502 / IEC 61131‑2 |
| |
Shock Resistance |
Compliant with JIS B 3502 / IEC 61131‑2 |
| |
Operating Atmosphere |
Non-corrosive, non-flammable, no excessive dust |
| |
Operating Altitude |
≤ 2000 m |
| |
Overvoltage Category |
II or less |
| |
Pollution Degree |
2 |
| Power Supply Section |
Power Supply Voltage |
24 V DC (±10 % / -15 %) |
| |
Power Consumption (max) |
8.4 W |
| |
Power Consumption (backlight OFF) |
7.0 W |
| |
Inrush Current |
≤ 30 A (2 ms, 25°C) |
| |
Permissible Instantaneous Power Failure |
≤ 5 ms |
| |
Noise Immunity |
1000 Vp‑p (1 µs noise) |
| |
Dielectric Strength |
500 V DC for 1 min |
| |
Insulation Resistance |
≥ 10 MΩ (500 V DC) |
