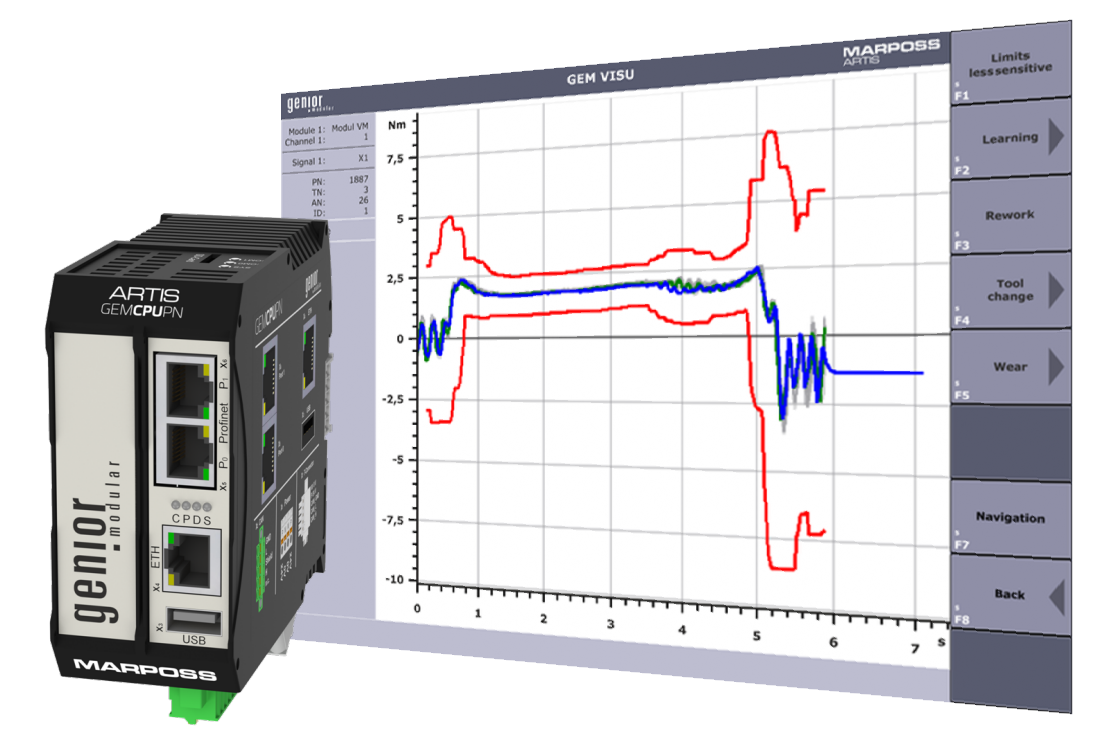

Marposs GEMCPU Tool and Process Monitoring System

Benefits:

• Modular/scalable: Economical solution, even for simple applications
• Efficient: Parallel to the process, up to 16 real-time measuring signals in up to 10 NC channels (partly optional) can be acquired.
• Automatic adjustment of alarm limits: makes tedious adjustment to machines or readjustment of limits practically unnecessary - manual adjustments can be made as required or may necessary for special applications
• Optimum use of tool lifetime: Based on the performance data or vibrations, optimum tool utilization can be achieved by evaluating the set wear limit (optional)
• Analysis functions: Process signals are recorded and can be monitored online or offline
• Blackbox: an event recorder records limit violations with time stamping
• Data processing: Plug-ins (APPs) for error evaluation, for trends and for CSV data-output included
• Overview for quick decisions: the online visualization MULTIVIEW shows all relevant signals and their deviations
• Adjustments: the password-protected EXPERT MODE allows many individual adjustments

Technical Specifications:

• Up to 16 real-time measuring signals distributed in up to 10 channels (optional)
• Adjusts the alarm levels automatically if possible
• Optimum tool utilization by evaluating the set wear limits (optional)
• Modular structure, scalable system adaptable to most machine types, easy to install on DIN rail
• Additional analytic functionalities, data processing for Industrial Internet of Things
• Networking with other systems
• MultiView and PlugIn-technology to support users in process optimization
• Expert Mode for individual adjustments
• OPTIONS: tool wear, adaptive control AC, machine condition monitoring, "Fingerprint", data import (data interface for C-THRU4.0)

SPECFICATIONS:

Processor	Type	Quad core 800 MHz (p. 2)
Memory	Hard Disk	2 GB MSATA SLC (Fail-safe) (p. 2)
Electrical	Supply Voltage	24 V DC (    20 %) (p. 2)
	Nom. Current Consumption	max. 500 mA (p. 2)
Physical	Dimensions	45 mm (W) x 112.8 mm (H) x 113.7 mm (D) (p. 3)
	Weight	243 g (p. 2)
	Material	Polyamide PA 6.6 (p. 2)
	Degree of Protection	IP30 (p. 2)
Environmental	Operating Temp	0 °C ... +55 °C (p. 2)
	Storage Temp	-20 °C ... +60 °C (p. 2)
	Humidity	5 – 85%, no condensation (p. 2)
Connectivity	Standard IP Address	192.168.214.60 (p. 2)
	Ethernet	10/100 BASE T (p. 2)
	Other Interfaces	USB Host, CAN, MQTT (All models) (p. 2)
	Wire Cross Section	0.2...1.5 mm² (p. 2)
Performance	Signal Sampling Rate	Configurable between 2 - 20 ms (p. 1)
	Monitoring Channels	Up to 10 (GEMCPU DP/F, PN, IP) (p. 1)
