Imagine a machine that stops jittering, skips steps, and loses accuracy. The Leadshine DM556 Stepper Motor Drive fixes that problem. It is a high-precision driver that powers stepper motors in CNC machines, 3D printers, and robotics. If you have ever seen a motor stall or make unwanted noise, you need a controller that can keep motion smooth and exact. This drive gives you the control you need to finish every job without errors.

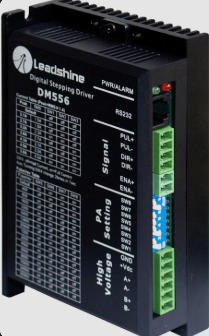

Leadshine DM556 Stepper Motor Drive for High-Precision Motion
Many users struggle with motor resonance and limited step resolution, which cause vibration and loss of detail. Those issues matter because they lower product quality and increase wear on equipment. The DM556 motor controller drive solves the problem with anti-resonance technology, programmable microstepping up to 102,400 steps per revolution, and a wide current range. It lets you set the exact motion profile you need, so every part comes out clean and quiet.
Benefits
- Reduces vibration for smoother cuts and prints.
- Offers ultra-fine microstepping for detailed positioning.
- Auto-configures to match motor specs, saving setup time.
- Low idle current cuts power use when the machine is idle.
- Extra-low noise keeps the workspace quiet.
Usages
The DM556 fits perfectly in CNC routers that need precise edge work. It also powers 3D printer extruders where layer accuracy is critical. In robotic arms, the driver provides smooth joint movement for pick-and-place tasks. Small automation lines use it to control conveyor belts and indexing tables. Anywhere a stepper motor must move with exact speed and position, this drive delivers reliable performance.

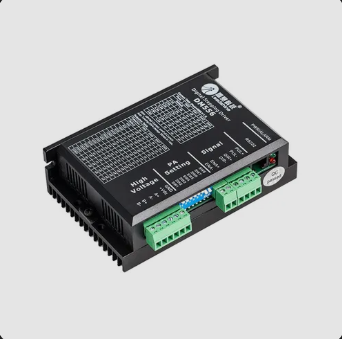

Key Features
- Anti-Resonance & Self-test/Auto-configuration technology.
- Programmable microstep resolution from full-step to 102,400 steps/rev.
- Supports both PUL/DIR and CW/CCW control modes.
- Output current range 0.5 A to 5.6 A (4.0 A RMS).
- Supply voltage acceptance 20 VDC to 50 VDC.
- Pulse input frequency up to 200 kHz.
- Logic signal current adjustable 7 mA to 16 mA.
- Isolation resistance of 500 M for safety.
- Automatic idle current reduction to save energy.
- Extra-low motor noise for quiet operation.
SPECIFICATIONS:
| Model |
DM556E |
| Series |
DM |
| Command Source |
PUL&DIR |
| Operation Voltage (VDC) |
20-50 |
| Output Current (A, Peak) |
5.6 |
| Input Frequency (KHz, Max.) |
200 |
| Logical Voltage (VDC) |
5 or 24 |
| no. of Inputs |
3 |
| no. of Outputs |
1 |
| Characteristics |
Standard |
