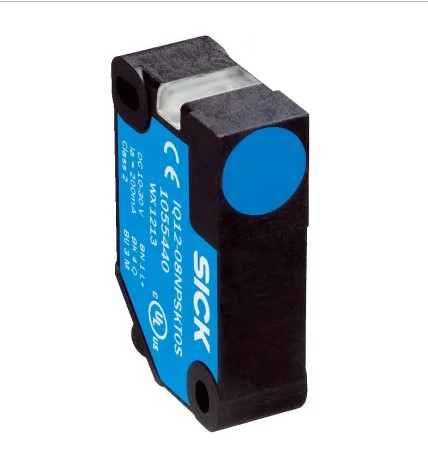

Inductive proximity sensors
IQB
Small cubic inductive standard sensors for industrial use
Compact design with best-in-class performance. The IQB sensors offer extended sensing ranges of up to 8 mm and state-of-the-art SICK-ASIC technology. Its proven, reliable design with 270° status display is also ideal for more demanding applications. Extremely rugged VISTAL® housing, innovative hotmelt molding and an IP68 enclosure rating make the sensors of the IQB product family the first choice for a wide range of applications and ensure the highest possible levels of process reliability and satisfaction.
Benefits:
- Best mechanical and electronic stability for extra-long service life
- Highest levels of process reliability for your application
- Long service life that reduce maintenance costs thanks to SICK's ASIC technology and rugged VISTAL® housing
- Precise detection and high sensor accuracy enable fast handling and assembly processes
- Space-saving integration in every application
- High resistance to shock and vibrations reduces maintenance costs
- Quick viewing of sensor status from any position in the room reduces maintenance costs
- Safe, fast mounting without any need for readjustment saves installation time and maintenance costs
Features:
- Types: 10 mm x 16 mm x 28 mm or 12 mm x 26 mm x 40 mm
- Extended sensing ranges: 2 mm to 8 mm
- Electrical configuration: DC 3-/4-wire
- Enclosure rating: IP68
- Temperature range: –25 °C to +75 °C
- Tough VISTAL™ housing
- Small version with 270° output state display
Specifications:
| Brand |
SICK |
| Series |
IQ12 |
| Sensor Technology |
Inductive |
| Body Style |
Block |
| Mounting Type |
Flush |
| Shielding |
Unshielded |
| Detection Range |
4 mm |
| Output Function |
NO |
| Digital Switching Output Type |
PNP |
| Switching Current |
200 mA |
| Switching Frequency |
2 kHz |
| Maximum Switching Frequency |
2kHz |
| Supply Voltage |
10 → 30 V dc |
| Maximum DC Voltage |
30V |
| Reverse Polarity Protection |
Yes |
| Short Circuit Overload Protection |
Yes |
| Connection Type |
M8 |
| IP Rating |
IP68 |
| Housing Material |
Plastic |
| Length |
26mm |
| Width |
12mm |
| Depth |
40mm |
| Minimum Operating Temperature |
-25°C |
| Maximum Operating Temperature |
+75°C |
