Tired of stepper drives that stall or give you a hard time to set up? The IANG1E 1-Axis Stepper Drive Controller Modbus TCP 24-48V DC is built to end that frustration. It is a compact controller that drives one or more stepper motors and talks to your PLC or PC over standard Ethernet. If you need precise motion without wiring a complex network, this unit gives you the reliability you need.

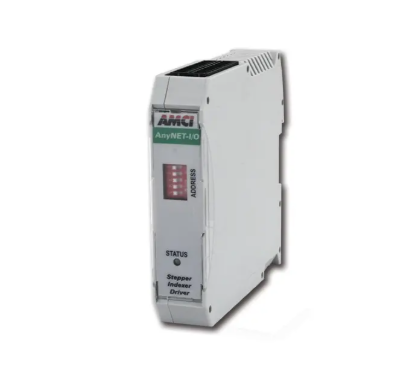

IANG1E 1-Axis Stepper Drive Controller Modbus TCP 24-48V DC
Many automation projects suffer from slow communication and limited expandability. When a controller cannot keep up, the whole line slows down and errors increase. This matters because downtime costs money and hurts product quality. The IANG1E solves the issue with a fast Modbus TCP/IP link, easy DIN-rail mounting, and the ability to add up to six axes. You get a clear, scalable solution that fits into any control cabinet.
Benefits
- Fast Ethernet communication reduces lag and improves real-time control.
- Programmable current from 0.1 A to 4.0 A lets you match any motor size.
- Hybrid open-loop and closed-loop modes give you servo-like performance when needed.
- Compact DIN-rail design saves space in crowded panels.
- Built-in safety inputs and fault output protect equipment and operators.
Usages
The IANG1E works well in conveyor systems where precise positioning is required. It fits robotic pick-and-place cells that need quick start-stop cycles. It can also drive indexing tables in packaging machines or control valve actuators in process plants. Because it supports Modbus TCP, you can link it to SCADA, PLCs, or PC-based motion software without extra converters.
Key Features
- Modbus TCP/IP protocol for easy network integration.
- Supply voltage 24-48 V DC, surge tolerant to 60 V.
- PWM frequency 20 kHz for smooth motor operation.
- Step resolution programmable from 200 to 32,767 steps per revolution.
- Peak current 5.7 A, idle current programmable 0-100 %.
- Four to eight-lead motor connections (Series, Parallel, Center-tapped).
- Differential auxiliary inputs 3.5-27 V DC, opto-isolated up to 1500 V.
- 5 V DC encoder input with external resistor option for 12-24 V range.
- Home, E-Stop, limit, index, jog, registration and position capture functions.
- Open-collector fault output, 30 V max, 20 mA limit.
- Operating temperature -20 C to 50 C, weight about 0.95 kg.
- DIN-rail mounting (EN 05 022) for quick installation.
SPECIFICATIONS:
| Part Numbers |
Master Module |
IANG1E: 1-axis stepper indexer + driver master module (Modbus TCP) |
| |
Expansion Module |
IANG1: 1-axis stepper indexer + driver expansion module (Modbus TCP) |
| Network |
Communication |
Modbus TCP/IP (MicroSmart FC6A / WindLDR compatible) |
| Electrical |
Amplifier Type |
Bipolar with two MOSFET H-bridges; RMS current control |
| |
PWM Frequency |
20kHz |
| |
Supply Voltage |
24 to 48V DC (Surge protected to 60V DC) |
| |
Output Current |
0.1A - 4.0A RMS (Selectable in 0.1A increments) |
| |
Peak Current |
5.7A Peak |
| |
Idle Current |
Programmable 0% to 100% (reduces after 1.5s of inactivity) |
| I/O Specs |
Auxiliary Inputs |
Differential; 3.5 to 27V DC (no external resistor needed); 1500V opto-isolated |
| |
Encoder Inputs |
5V DC differential (requires external resistor for 12-24V operation) |
| |
Input Functions |
Home, E-Stop, Limit Switch, Start Index, Stop Jog, Registration, Capture, or General Purpose |
| |
Fault Output |
Open collector/emitter (30V DC max / 20mA max) |
| Performance |
Step Resolution |
Programmable 200 to 32,767 steps per revolution (Variable step size) |
| |
Max Velocity |
Motor/load dependent |
| |
Control Modes |
Open or Closed Loop (Hybrid control: Servo performance using Stepper hardware) |
| |
Axis Capacity |
1 to 6 axis of motion control (expandable stack) |
| Commands |
Motion Profiles |
Absolute, Relative, Hold, Resume, Immediate Stop, Homing, Jog, Registration, Indexed, Blend |
| |
System Tools |
Reset Errors, Preset Position, Reset Encoder, Electronic Gearing (with quadrature encoder) |
| Physical |
Motor Connection |
8-lead (series/parallel), 6-lead (series/center tap), or 4-lead |
| |
Included Connectors |
MS-2x11 (I/O connector) and MS-4M (motor connector) |
| |
Mounting |
DIN rail mounting (EN 05 022 - 35 x 7.5 or 35 x 15) |
| |
Operating Temp |
-20°C to 50°C ambient |
