Product Overview

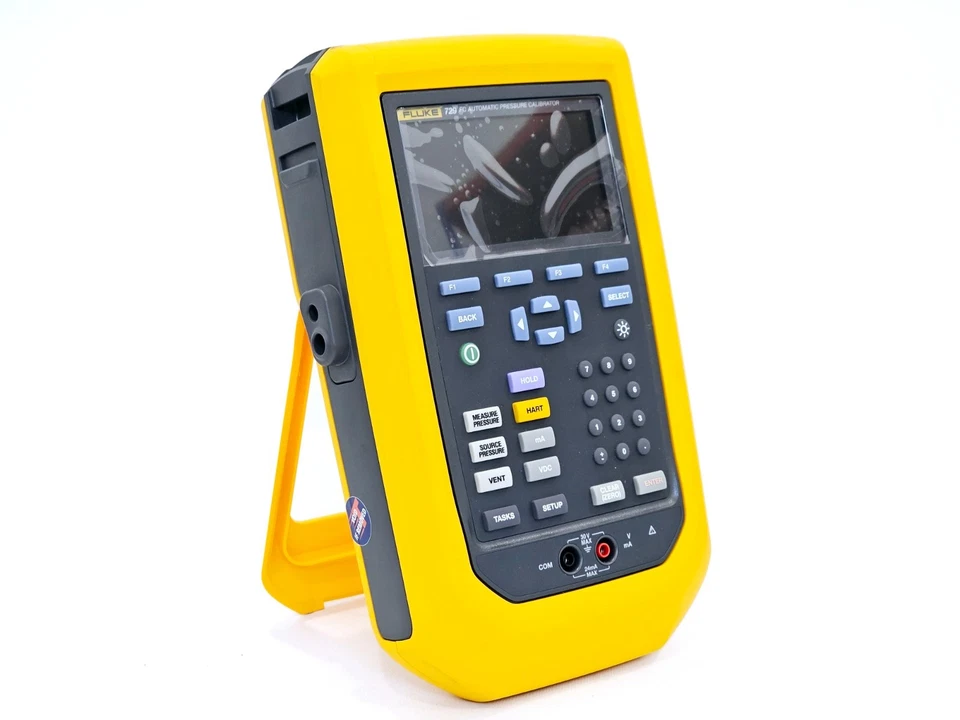

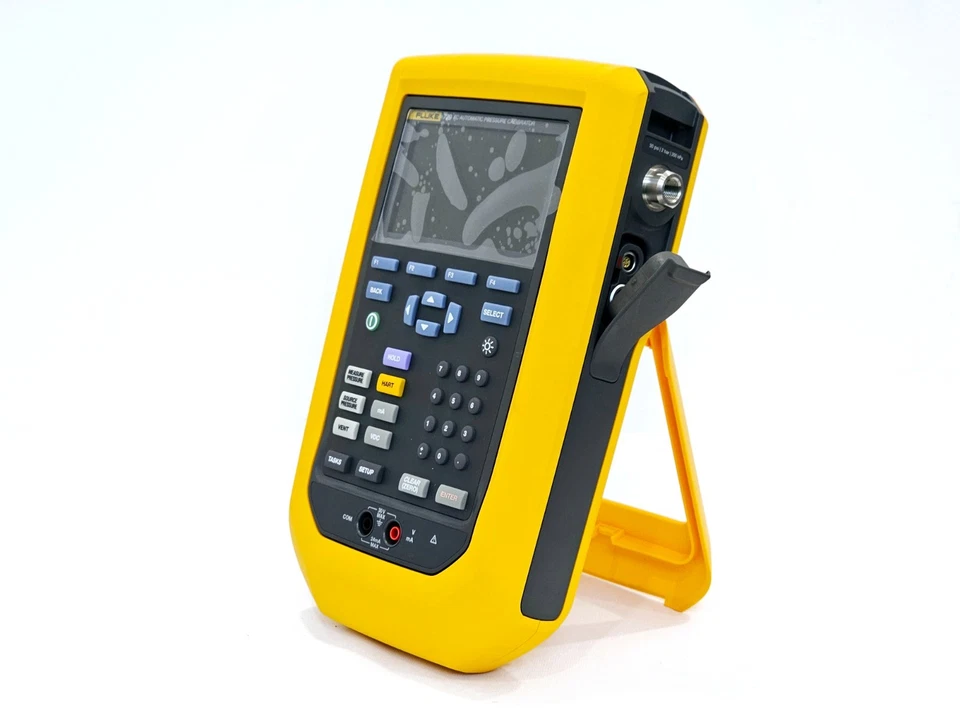

The Fluke 729 Automatic Pressure Calibrator is a portable, high-precision calibration tool designed to simplify pressure transmitter calibration for process technicians. Equipped with an internal electric pump, the device automatically generates and regulates pressure, eliminating manual pumping and reducing calibration time.
Users can simply enter a target pressure value, and the calibrator automatically pumps to and stabilizes at the desired setpoint using internal fine adjustment control. The instrument also supports automated multi-point pressure calibration tests and automatically documents results, allowing technicians to perform faster and more consistent calibrations.
The Fluke 729 combines pressure sourcing, measurement, and electrical signal testing. It can measure, source, and simulate 0 to 24 mA signals, supply 24V loop power, and features built-in HART communication for transmitter adjustment and configuration. With its rugged portable design (1-meter drop tested), graphical color display, and compatibility with DPCTrack2™ software, it is an ideal solution for field instrumentation maintenance.
Wireless "FC" models offer integration with the Fluke Connect® mobile app, enabling technicians to monitor measurements remotely and log data directly from the field.
Key Features
- Automatic pressure generation and control up to 300 psi (20 bar / 2 MPa).
- Automatic internal fine-pressure adjustment to compensate for minor leaks in hoses.
- Automated documentation using onboard test templates for transmitters and switches.
- Measure, source, and simulate 0 to 24 mA signals.
- 24V loop power for powering transmitters during standalone tests.
- Built-in HART communication for configuration and mA trimming.
- Bright dual/triple-channel color graphical display.
- Built-in leak testing for verifying test setups.
- Optional temperature measurement with the 720RTD probe.
- Compatible with Fluke 700 and 750 series pressure modules.
- Rugged portable design with a standard 3-year warranty.
Specifications
| Parameter |
Specification |
| One-year Specification |
0.02 % of full scale |
| Control Specification |
0.005 % full scale minimum |
| Maximum Pressure |
30 psi (2 bar / 200 kPa) |
| Pressure Generation |
Internal electric pump |
| Leak Testing |
Built-in |
| Pressure Range |
-12.0000 to 30.0000 psi / -0.82737 to 2.06842 bar / -82.737 to 206.843 kPa |
| mA Range |
0 mA to 24 mA (Measure, Source, Simulate) |
| Vdc Range |
0 V dc to 30 V dc (Measure) |
| mA Resolution |
1 μA |
| Voltage Resolution |
1 mV |
| Accuracy |
0.01 % ± 2 LSD (at 23 °C ± 5 °C) |
| Loop Power |
24 V dc @ 20 mA |
| Drive Capability |
1200 Ω (950 Ω with internal HART resistor) |
| Temperature Sensor Type |
100 Ω Pt(385) RTD |
| Temperature Measurement Range |
-50 °C to 150 °C (-58 °F to 302 °F) |
| Temperature Resolution |
0.01 °C (0.01 °F) |
| Temperature Accuracy |
± 0.25 °C (± 0.45 °F) combined uncertainty |
| Dimensions (H × W × L) |
7 cm × 27.94 cm × 17.27 cm |
| Weight |
2.95 kg (6.5 lbs) |
| Ingress Protection |
IP54 |
| Operating Temperature |
-10 °C to 50 °C (0 °C to 50 °C for pressure control) |
| Operating Altitude |
3000 m |
| Wireless Frequency (FC Models) |
2412 MHz to 2462 MHz |
| Wireless Compatibility |
Fluke Connect® mobile app and desktop software |
