When you work with electrical systems, a wrong reading can damage equipment, cause downtime, or even create safety hazards. Inaccurate or fragile meters often give false numbers, making troubleshooting slow and risky. The Fluke 87V Industrial Digital Multimeter solves this by delivering precise, reliable measurements in tough environments, so you can fix problems quickly and stay safe.

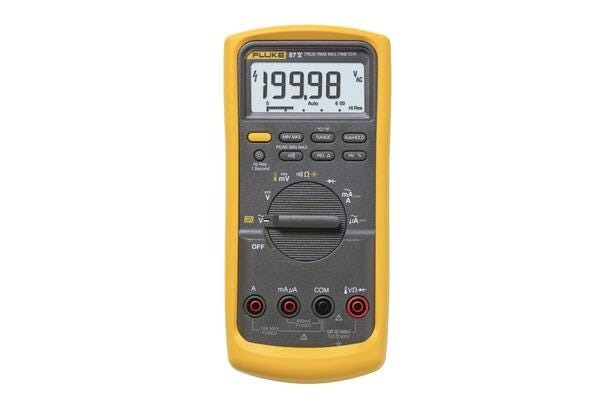

Fluke 87V Industrial Digital Multimeter with Fluke
This is a rugged, high-accuracy digital multimeter built for industrial use. It measures voltage, current, resistance, capacitance, frequency and temperature with true-RMS accuracy. If you need to verify a 1000 V circuit or check a low-microamp current, this tool gives you the numbers you trust. Many technicians struggle with meters that drift or cannot handle high-energy sites; the Fluke 87V removes that worry by meeting CAT III 1000 V and CAT IV 600 V safety standards.
Usages
Use it on a factory floor to test motor windings and control panels. It works well for HVAC technicians checking thermostat wiring and refrigerant pressure sensors. Electricians can rely on it for residential wiring inspections, from outlet voltage to breaker current. Field service engineers appreciate the temperature probe for checking furnace elements or industrial ovens. The meter also fits in a toolbox for quick on-site troubleshooting of electronic assemblies.
Benefits
- Accurate readings reduce guesswork and prevent costly re-work.
- True-RMS capability handles distorted waveforms common in industrial power.
- Rugged case and safety rating protect you in harsh environments.
- Large backlight lets you read data in low-light spaces.
- Auto-range function saves time by selecting the correct scale instantly.
Specification
| DC Voltage |
Max 1000 V, Accuracy ±(0.05% + 1), Resolution 10 µV |
| AC Voltage |
Max 1000 V, Accuracy ±(0.7% + 2) True RMS, Bandwidth 20 kHz, Resolution 0.1 mV |
| DC Current |
Max 10 A (20 A for 30 s), Accuracy ±(0.2% + 2), Resolution 0.01 µA |
| AC Current |
Max 10 A (20 A for 30 s), Accuracy ±(1.0% + 2) True RMS, Resolution 0.1 µA |
| Resistance |
Max 50 MΩ, Accuracy ±(0.2% + 1), Resolution 0.1 Ω |
| Capacitance |
Max 9,999 µF, Accuracy ±(1% + 2), Resolution 0.01 nF |
| Frequency |
Max 200 kHz, Accuracy ±(0.005% + 1), Resolution 0.01 Hz |
| Duty Cycle |
Max 99.9%, Accuracy ±(0.2% per kHz + 0.1%), Resolution 0.1% |
| Temperature |
-200 °C to 1090 °C (-328 °F to 1994 °F) excluding probe; 80 BK probe: -40 °C to 260 °C (-40 °F to 500 °F), ±2.2 °C or 2% |
| Conductance |
Max 60.00 nS, Accuracy ±(1.0% + 10), Resolution 0.01 nS |
| Diode Test |
Range 3 V, Resolution 1 mV, Accuracy ±(2% + 1) |
| Operating Temp |
-20 °C to +55 °C |
| Storage Temp |
-40 °C to +60 °C |
| Humidity |
0–90% (0–35 °C), 0–70% (35–55 °C), non-condensing |
| Altitude |
Up to 2000 m |
| Safety |
Overvoltage: EN 61010–1 CAT III 1000 V / CAT IV 600 V, CE/CSA/RCM approved |
