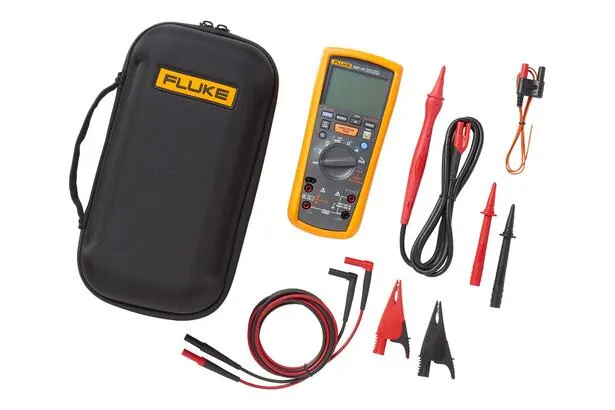

Key Features
• Safety first – Connect the insulation tester and monitor test measurements remotely to keep yourself out of harm’s way.

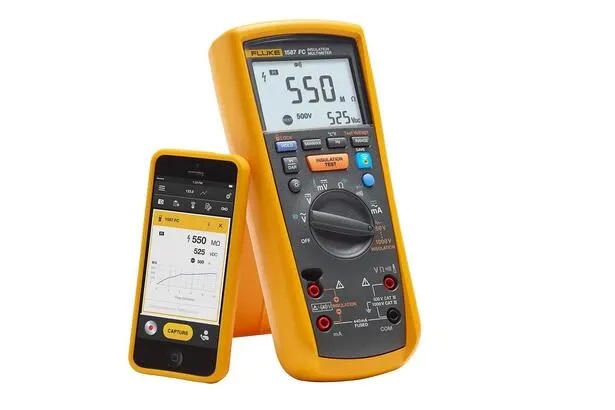

• Wireless result sharing – Quickly view and share insulation resistance test results with your smartphone using Fluke Connect.
• Measurement comparison – Save measurements and compare results over time to quickly identify developing problems.
• PI/DAR timed ratio testing – Includes TrendIt™ graphs to help identify moisture and contaminated insulation faster.
• Automatic data storage – Store measurements directly to your smartphone or cloud, eliminating the need to write down results.
• Temperature compensation – Establish accurate baselines and perform reliable historical comparisons.
• Live circuit detection – Prevents insulation testing if voltage greater than 30 V is detected.
• VFD low-pass filter – Ensures accurate measurements on variable frequency motor drives.
• Automatic capacitive voltage discharge – Provides additional protection for the user during testing.
• Multiple measurement functions – Measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance, continuity, capacitance, diode, temperature, frequency, and insulation resistance.
Specifications
| Category | Parameter | Specification |
|---|---|---|
| AC Voltage Measurement | Range / Resolution | 600.0 mV (0.1 mV), 6.000 V (0.001 V), 60.00 V (0.01 V), 600.0 V (0.1 V), 1000 V (1 V) |
| Accuracy (50–60 Hz) | ±(1% + 3) up to 600 V, ±(2% + 3) at 1000 V | |
| Accuracy (60 Hz–5000 Hz) | ±(2% + 3) (1 kHz bandwidth) | |
| Low-Pass Filter Voltage | Range / Resolution | 600.0 mV (0.1 mV), 6.000 V (0.001 V), 60.00 V (0.01 V), 600.0 V (0.1 V), 1000 V (1 V) |
| Accuracy (50–60 Hz) | ±(1% + 3) up to 600 V, ±(2% + 3) at 1000 V | |
| Accuracy (60–400 Hz) | +(2% + 3), −(6% − 3) | |
| DC Voltage | Range / Resolution | 6.000 V (0.001 V), 60.00 V (0.01 V), 600.0 V (0.1 V), 1000 V (1 V) |
| Accuracy | ±(0.09% + 2) | |
| Input Impedance | 10 MΩ nominal, <100 pF | |
| Normal Mode Rejection | >60 dB @ 50/60 Hz | |
| Common Mode Rejection | >120 dB @ DC, 50/60 Hz (1 kΩ unbalance) | |
| DC Millivolts | Range | 600.0 mV |
| Resolution | 0.1 mV | |
| Accuracy | ±(0.1% + 1) | |
| AC Current (45 Hz–1000 Hz) | Range / Resolution | 400 mA (0.1 mA), 60 mA (0.01 mA) |
| Accuracy | ±(1.5% + 2) | |
| Burden Voltage | 2 mV/mA typical | |
| DC Current | Range / Resolution | 400 mA (0.1 mA), 60 mA (0.01 mA) |
| Accuracy | ±(0.2% + 2) | |
| Burden Voltage | 2 mV/mA typical | |
| Overload | 600 mA for 2 minutes maximum | |
| Fuse Protection | 0.44 A, 1000 V, IR 10 kA | |
| AC Conversion | Measurement Method | True-RMS responding (5%–100% of range) |
| Resistance | Range / Resolution | 600 Ω (0.1 Ω), 6.000 kΩ (0.001 kΩ), 60.00 kΩ (0.01 kΩ), 600.0 kΩ (0.1 kΩ), 6.000 MΩ (0.001 MΩ), 50.0 MΩ (0.01 MΩ) |
| Accuracy | ±(0.9% + 2) up to 6 MΩ, ±(1.5% + 3) at 50 MΩ | |
| Open Circuit Test Voltage | <8.0 V DC | |
| Short Circuit Current | <1.1 mA | |
| Overload Protection | 1000 V rms or DC | |
| Diode Test | Test Current | 1.0 mA nominal |
| Indication | Voltage drop display 0.6 V | |
| Accuracy | ±(2% + 3) | |
| Continuity Test | Audible Indication | Continuous tone below 25 Ω, off above 100 Ω |
| Max Reading | 1000 Ω | |
| Open Circuit Voltage | <8 V | |
| Short Circuit Current | 1 mA typical | |
| Response Time | >1 ms | |
| Frequency Measurement | Range | 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz |
| Resolution | 0.01 Hz to 0.01 kHz | |
| Accuracy | ±(0.1% + 1) | |
| Frequency Counter Sensitivity | 600 mV Range | 100 mV (5 Hz–20 kHz), 150 mV (20–100 kHz) |
| 6 V Range | 1 V (5–20 kHz), 1.5 V (20–100 kHz) | |
| 60 V Range | 10 V (5–20 kHz), 36 V (20–100 kHz) | |
| 600 V Range | 100 V (5–20 kHz) | |
| 1000 V Range | 300 V (5–20 kHz) | |
| Capacitance | Range / Resolution | 1000 nF (1 nF), 10 µF (0.01 µF), 100 µF (0.1 µF), 9999 µF (1 µF) |
| Accuracy | ±(1.2% + 2), ±(1.2% ±90 counts for higher ranges) | |
| Temperature Measurement | Range | −40 °C to 537 °C (−40 °F to 998 °F) |
| Resolution | 0.1 °C / 0.1 °F | |
| Accuracy | ±(1% + 10 counts) °C / ±(1% + 18 counts) °F | |
| Insulation Resistance | Measurement Range | 0.01 MΩ to 2 GΩ |
| Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V | |
| Voltage Accuracy | +20%, −0% | |
| Short Circuit Test Current | 1 mA nominal | |
| Live Circuit Detection | Inhibits test if >30 V detected | |
| Auto Discharge | <0.5 s for ≤1 µF | |
| Max Capacitive Load | 1 µF | |
| Output Voltage Insulation Test | Accuracy | ±(3% + 5 counts) for 50 V & 100 V ranges |
| Accuracy | ±(1.5% + 5 counts) for 250 V–1000 V ranges | |
| High Range Accuracy | ±(10% + 3 counts) up to 2 GΩ | |
| Maximum Voltage | Terminal to Common | 1000 V |
| Operating Temperature | −20 °C to 55 °C | |
| Storage Temperature | −40 °C to 60 °C | |
| Humidity | 95% @10–30 °C, 75% @30–40 °C, 40% @40–55 °C | |
| Safety Rating | CAT IV 600 V / CAT III 1000 V | |
| EMC Compliance | IEC 61326-1, CISPR 11 Group 1 Class A | |
| Enclosure Protection | IP40 | |
| Communication | 2.4 GHz ISM Band | |
| Battery | Four AA (IEC LR6) | |
| Battery Life | Up to 1000 hours meter use | |
| Dimensions | 5.0 × 10.0 × 20.3 cm | |
| Weight | 550 g | |
| Operating Altitude | 2000 m | |
| Storage Altitude | 12,000 m |
