Many plants struggle to measure the flow of aggressive chemicals or hot liquids. Inaccurate data can cause waste, safety risks, and costly downtime. You need a meter that works with corrosive media, stays reliable at high temperature, and does not add pressure loss. The Endress+Hauser Promag 50P Flow Meter gives you exact flow numbers, protects your process, and saves you time and money.

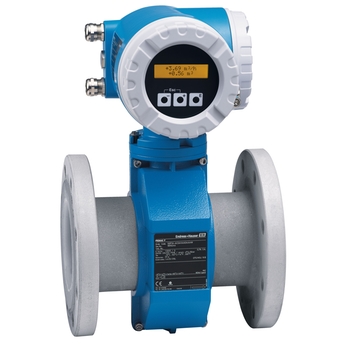

Endress+Hauser Promag 50P Flow Meter with Endress
This device is an electromagnetic flow meter designed for tough chemical and process environments. It measures liquid flow without any moving parts, so it stays clean and needs almost no maintenance. If you have pipes that carry corrosive or hot fluids, you will see large errors with ordinary meters. Endress provides a rugged solution that keeps measurement error under 0.5 % and can be upgraded to 0.2 % for critical applications.
Usages
The Promag 50P fits in water treatment plants where chlorine or acid is moved through large pipes. It works in food-grade lines that need hygienic, non-contact measurement. In oil refineries it can handle high-temperature streams up to 180 C. The meter also suits pharmaceutical batch processes that demand precise flow control and strict documentation.
Benefits
- Accurate flow data reduces material waste and improves product quality.
- No moving parts mean low maintenance and long service life.
- Energy-saving design creates no pressure drop, so pumps run more efficiently.
- Wide temperature and pressure range lets you use one meter for many processes.
- Built-in safety certifications keep you compliant with ATEX, IECEx and other standards.
Specification
| Measuring Principle |
Electromagnetic |
| Application |
Chemical and process applications with corrosive liquids and high temperatures |
| Sensor Features |
Wide range of wetted materials, energy saving measurement with no pressure loss, maintenance free with no moving parts |
| Nominal Diameter |
Up to DN 600 (24 inch) |
| Liner Material |
PTFE or PFA |
| Nominal Diameter Range |
DN 15 to DN 600, 1/2 inch to 24 inch |
| Maximum Measurement Error |
±0.5 percent, optional ±0.2 percent |
| Measuring Range |
0 to 9600 m3 per hour |
| Maximum Process Pressure |
PN10 to PN40, Class 150 to 300, JIS 10 to 20K, AS 2129 Table E, AS 4087 PN16 |
| Medium Temperature Range |
-40 °C to +180 °C |
| Ambient Temperature Range |
-20 °C to +60 °C, optional -40 °C to +60 °C |
| Degree of Protection |
IP67 (NEMA 4X), IP68 (NEMA 6P) |
| Display and Operation |
Two line backlit display with push button control |
| Outputs |
4 to 20 mA, Pulse, Frequency, Status |
| Inputs |
Status |
| Digital Communication |
HART, PROFIBUS PA |
| Hazardous Area Approvals |
ATEX, IECEx, NEPSI, FM, CSA |
| Product Safety Certifications |
CE, C tick, EAC |
| Pressure Approvals |
PED, CRN |
