Product Description:

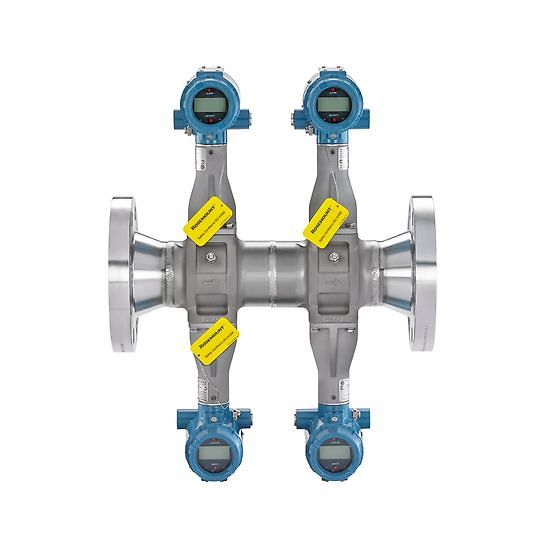

The Rosemount 8800 Quad Vortex provides the ultimate redundant flow measurement solution to guard against spurious trips using two out of three voting and includes a fourth integrated transmitter for process control. The 8800 Quad Vortex Flow Meter offers world-class reliability with a gasket-free, non-clog meter body that eliminates potential leak points, resulting in maximum process availability and fewer unscheduled shutdowns.
Features:
- Dual shedder bars, quadrupole sensors and sensing elements, and quadrupole transmitter configuration provides the ultimate solution for redundant flow measurement
- IEC 61508 certified for use in safety instrumented systems up to SIL 3 with 2oo3 voting
- An isolated sensor allows for online replacement without breaking the process seal
- Increase plant availability, decrease maintenance costs, and eliminate potential leak points with a unique gasket-free meter body design
- The Critical Process valve (CPA option) provides an extra level of safety assurance by allowing users to verify secondary containment integrity
- Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
- A standard internal signal generator included in every meter that simplifies electronics verification
- All sensor/transmitter pairings are independently calibrated and are given a unique calibration number called a reference k factor
Specifications:
|
Flow Meter Accuracy
|
±0.65% of volumetric rate for liquids
±1% of volumetric rate for gas and steam
|
|
Turndown
|
15:1
|
|
Output
|
4-20 mA with HART® 5 or 7
4-20 mA with HART® 5 or 7 and scalable pulse output
FOUNDATION fieldbus ITK6 with 2 Analog Input blocks,
1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block
Modbus RS-485 with device status and 4 variables
|
|
Wetted Material
|
Stainless Steel; 316 / 316L and CF3M
Nickel Alloy; C-22 and CW2M
High Temp Carbon Steel; A105 and WCB
Low Temp Carbon Steel; LF2 and LCC
Duplex; UNS S32760 and 6A
Consult factory for other wetted material
|
|
Flange Options
|
ANSI Class 150 to 1500
DIN PN 10 to PN 160
JIS 10K to 40K
Flanges are available in a variety of facings
Consult factory for additional flange ratings
|
|
Operating Temperatures
|
-330°F to 800°F (-200°C to 427°C)
|
|
Line Size
|
2" - 14" (50 - 350 mm)
|
