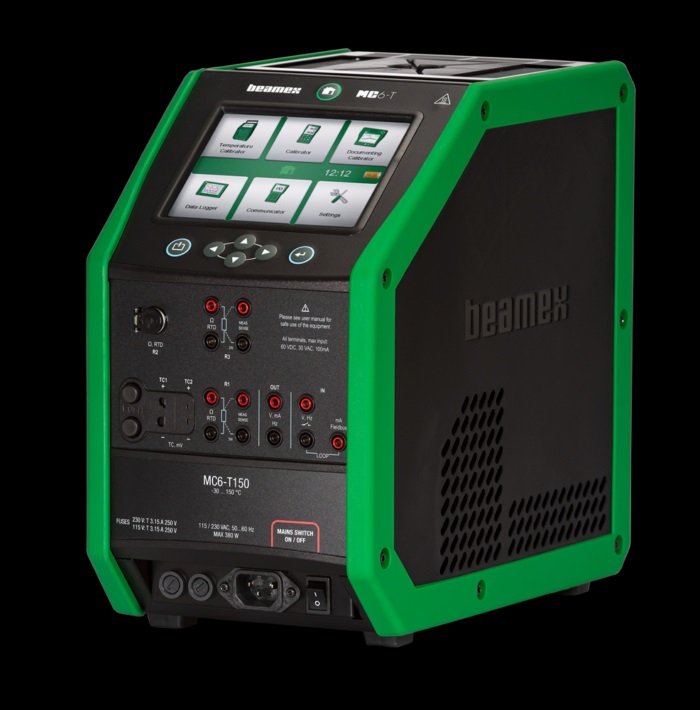

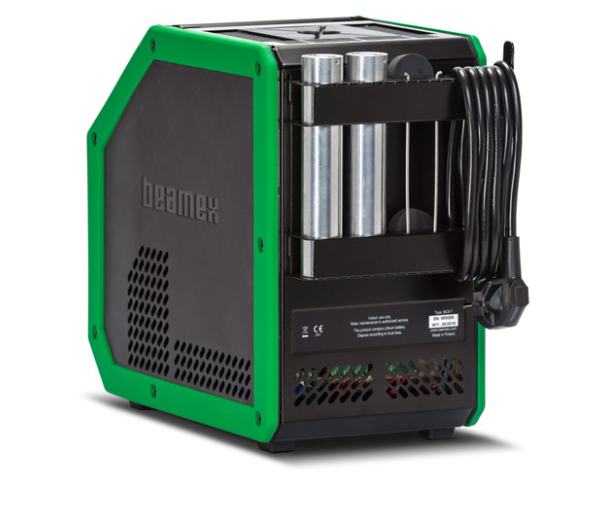

Beamex MC6-T Multifunction Temperature Calibrator and Communicator

Product Overview

The Beamex MC6-T combines a state-of-the-art temperature dry block with built-in multifunction process calibrator and communicator technology. It offers versatility that no other temperature calibrator can match, providing calibration capabilities for temperature, pressure, and various electrical signals as well as a multi-bus communicator for fieldbus instruments.

Features

Superior metrological performance

The MC6-T provides superior metrological performance and accuracy for temperature and electrical calibrations. The active multizone (triple/dual) temperature control technology ensures an excellent temperature gradient. Each MC6-T is delivered with a traceable, accredited calibration certificate as standard as proof of its accuracy.

Stable and safe

The MC6-T uses advanced, patented methods for following stability, ensuring that only stable temperature readings are used even in demanding industrial environments or with fluctuating mains voltage. It also includes several patented safety features.

Advanced functionality

The MC6-T offers versatility that no other temperature calibrator can match, providing calibration capabilities for temperature, electrical signals, and even pressure. The MC6-T150 and MC6-T660 provide temperature range from -30 to 660 ⁰C (-22 to 1220 ⁰F)and can perform fully automatic calibrations. Most measurement functions can be used with the rechargeable battery without mains voltage connected.

Field communicator

The MC6-T contains a multi-bus field communicator for HART, FOUNDATION Fieldbus, and Profibus PA protocols to calibrate, configure, and trim your smart instruments. All three protocols can be enabled simultaneously.

Digital data flow

The MC6-T is a documenting calibrator that communicates with Beamex calibration management software, enabling a fully digitalized calibration process.

Measurement, generation and simulation capabilities:

• Temperature generation

• Pressure measurement (internal barometric and external pressure modules)

• Voltage measurement (±1 V and −1…60 VDC)

• Current measurement (±100 mA) (internal or external supply)

• Frequency measurement (0…50 kHz)

• Pulse counting (0…10 Mpulse)

• Switch state sensing (dry/wet switch)

• Built-in 24 VDC loop supply (low impedance, HART impedance or FF/PA impedance)

• Voltage generation ( ±1 V and −3…24 VDC)

• Current generation (0…55 mA) (active/passive, i.e. Internal or external supply)

• Resistance measurement, two simultaneous channels (0…4 kΩ)

• Resistance simulation (0…4 kΩ)

• RTD measurement, two simultaneous channels

• RTD simulation

• TC measurement, two simultaneous channels (universal connector/mini-plug)

• TC simulation

• Frequency generation (0…50 kHz)

• Pulse queue generation (0…10 Mpulse)

• HART communicator

• FOUNDATION Fieldbus communicator

• Profibus PA communicator
