Product Overview

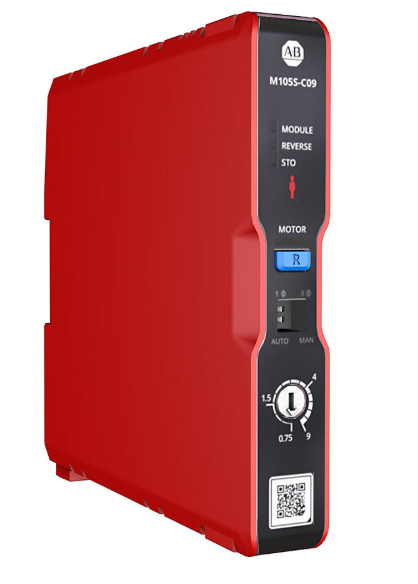

The Allen-Bradley M105S-C09-P is a compact safety reversing electronic motor starter from the M100 series designed for efficient motor control and protection in industrial automation systems. It supports an adjustable overload protection range of 0.75 to 9 A and operates with a 24 V DC control voltage.
The device integrates hybrid switching technology, combining solid-state electronics with mechanical contacts to reduce wear and improve reliability. Built-in protection features include overload protection, phase-loss detection, and weld detection.
With a slim 22.5 mm width, DIN rail mounting capability, and push-in terminals for quick wiring, the M105S-C09-P helps reduce panel space while simplifying installation in modern control panels.
Specifications
| Category |
Field |
Details |
| General Information |
Brand |
Allen-Bradley |
| |
Manufacturer |
Rockwell Automation |
| |
Product Series |
M100 Electronic Motor Starter |
| |
Model / MPN |
M105S-C09-P |
| |
Product Type |
Electronic Motor Starter |
| |
Starter Type |
Safety Reversing Starter |
| |
Terminal Type |
Push-In Terminal |
| |
Motor Starter Function |
Direct-On-Line (DOL) |
| |
Safety Function |
Supported |
| Electrical Specifications |
Rated Operating Current (Ie) |
9 A |
| |
Overload Protection Adjustment Range |
0.75 – 9 A |
| |
Maximum Operating Voltage |
480 V |
| |
Control Supply Voltage |
24 V DC |
| |
Release Class |
Class 10 |
| |
Starter Technology |
Hybrid Electronic Motor Starter |
| Mechanical / Construction |
Mounting Type |
DIN Rail Mounting |
| |
Protection Rating |
IP20 |
| |
Width |
22.5 mm |
| |
Height |
158.1 mm |
| |
Depth |
148 mm |
| Environmental Specifications |
Operating Temperature |
−20 °C to +55 °C |
| |
Installation Environment |
Industrial Control Panels |
