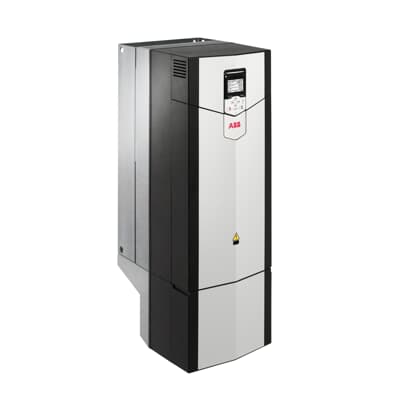

ABB ACS880-01-228A-4 Low Voltage AC Industrial Wall-Mounted Single Drive
The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range o
f applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.
Features:
-
3-phase operation
-
IP21 protection
-
Wall-mounted design
-
Multi-protocol communication (CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO)
-
High output power (132 kW normal duty)
-
IE2 efficiency level
-
Analog and digital I/O support
Specifications:
| Number of Phases |
3-phase |
| Degree of Protection |
IP21 |
| Enclosure Type |
NEMA Type 1 |
| Maximum Altitude |
4000 m |
| Operating Humidity (RHamb) |
5 … 95 % |
| Sound Level |
68 dB(A) |
| Battery Information |
Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency Range |
47.5 … 63 Hz |
| Frame Size |
R8 |
| Input Voltage |
380 … 480 V |
| Mounting Type |
Wall-mounted |
| Communication Protocols |
CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO |
| Hardware Interfaces |
Industrial Ethernet: 0, Other: 4, Parallel: 0, PROFINET: 0, RS-232: 0, RS-422: 0, RS-485: 1, Serial TTY: 0, USB: 1 |
| Includes |
Control unit, PC connection |
| Analog Inputs |
2 |
| Analog Outputs |
2 |
| Digital In/Outputs |
6 / 2 |
| Output Current (Normal Use, In) |
228 A |
| Output Current (Light-Overload, ILD) |
228 A |
| Output Current (Heavy-Duty, IHD) |
171 A |
| Output Power (Normal Use, Pn) |
132 kW |
| Output Power (Light-Overload, PLD) |
132 kW |
| Output Power (Heavy-Duty, PHD) |
110 kW |
| Power Consumption (@Pcons) |
2887 W |
| Apparent Power Output |
174 kVA |
| Efficiency Level |
IE2 |
| Standby Loss |
59 W |
| Temperature Rating |
Maximum 40 °C |
